-40 ~+85°C P15-31 Outdoor Fixed Led Mesh Display Video Curtain
Background on Building
Quick introduction:
Look like Screenless
Quick installation
Finish installation 10 seconds per sqm
Fast maintenance
Patented design for 3 minutes/sqm
Easy to achieve front / rear maintenance
Special only led Grid Screen
Steel weight 10KG/sqm only, equal 15% of traditional outdoor led
screen steel Cabinet
Transparency 40%-80%

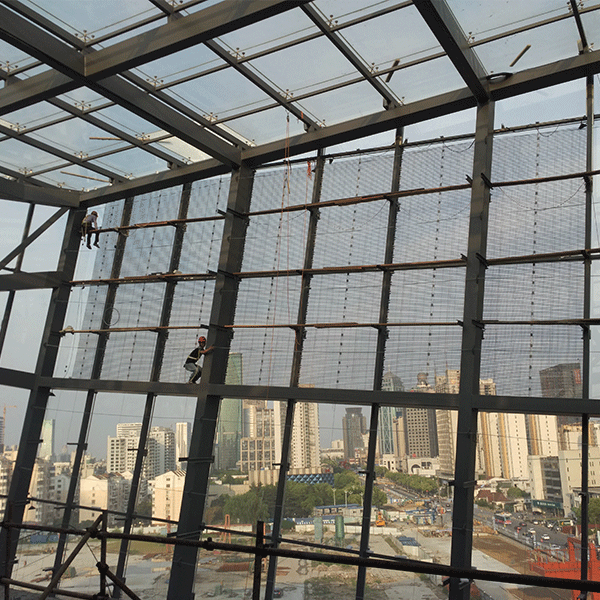

1. Extremely light weight----------14kgs/sqm, can be install onto
building glass wall.
2. Fast installation ---------Average 5-10 seconds to install an
individual cabinet.
3. Stability long life time-------Low consumption of electricity to
increase the lifetime of LEDs.
4. Energy efficient--------average 104W per sqm
5. Simple structure-------Reduce the cost of steel structure
(Average 5 USD per sqm)
Pixel Pitch: Horizontal 15.6mm Vertical 31.25mm
Cost savings 80% of maintain operation
Cost savings 70% of electricity
Cost savings of Air conditioner
Cost savings 70% of steel structure
Cost savings 80% of labour
Cost savings 75% of transportation
Brief info:
1. No Escape Tool design: screen environment mostly glass building
in case of fire, escape and rescue are very urgent and important,
Sunrise P15.625 outdoor screen tool-free disassembly function
screen rear side of two seconds, especially respect for life and
fully meet fire safety requirements.
2. unique within the industry, ultra-light weight: unit box weighs
only 7.45KG (50 * 100CM), the project is only 1500KGS screen body
weight thus reducing the building to support the weight of the body
on the screen, minimize security risks!!
3.Standardized installation framework (standard frame size 200CM
wide X100CM height), small on-site construction difficulty, high
precision, fast efficiency! The measure, the industry faster than
3-5 times, greatly reducing the body of the screen frame and fixed
installation time, substantial savings in installation costs.
4. The screen is fixed to the body frame fixed firmware process is
simple, easy to operate, completely within the industry complex and
time-consuming step shortcomings.
5. The dual power backup design: display body control card power
supply and separate power supply, reducing power interference
between the two, improve quality screen body stability.
6. Ultra power-saving design: each squared average power
consumption control at about 150W, than peers of similar products
saving more than 50% each year for the owner saving about eight
million (100 square color screen, runs daily from 8:00 am to 22:00,
ie 14 hours calculated)
Low power consumption, low heat, energy saving and environmental
protection
Signal, power supply stability, the use of safe and reliable
Efficient and stable, high reliability, long service life
No fan design, low temperature operation, quiet no noise
Ultra-thin box, easy to transport, installation and maintenance
Support front and rear maintenance, installation more convenient
Specification parameter P15-31 Mesh outdoor Led Curtain Fixed led
Display
| Tube color | Specifications | Indicators (typical values, specific to selected lamps) |
| R | domestic | Wavelength: 618-630nm, brightness 870mcd (20mA) |
| G | domestic | Wavelength: 518-538nm, brightness 1680mcd (10mA) |
| B | domestic | Wavelength: 460-480nm, brightness 380mcd (10mA) |
| Product model | 15mm-31mm |
| Horizontal spacing(mm) Vertical spacing(mm) | 15.625mm 31.25mm |
| Pixel composition | DIP346 SMD2727 |
| Resolution (dot/㎡) | 4096 |
| Unit cabinet dots | 2048 |
| Pixel per Unit(dots) | 32(W)x64(H) |
| Color Grayscale (Bit) | 14 |
| Brightness(CD/㎡) | ≥6500cd |
| Contrast | 1:1600 |
| Color temperature | 6500-9300k |
| (Brightness adjust) | 0-255 |
| Horizontal viewing angle(°) Vertical viewing angle(°) | ≥110° ≥50° |
| The best viewing distance(M) | 15-300 |
| Max Consumption(W/㎡) | 450 |
| Average power consumption(W/㎡) | 135 |
| Unit cabinet Weight (kg/pcs) | 10.0 |
| Cabinet Weight (kg/㎡) | 20.0 |
| Frame Weight (kg/㎡) | 8.0 |
| Unit cabinet thickness (cm) | 6.7 |
| Frame thickness (cm) | 6.0 |
| Installation thickness (cm) | 12.7 |
| Strips width(mm) | 9.8 |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
