IP66 6500nit RGB Full color Outdoor Led Advertising Screens
Wireless control
Feature
Cree Led lamp
Original Cree Chip led lamp P10 Advertising screen
5 years warranty. Long lifetime
Waterproof Neutrik connector
Fan cooling system
High brightness >6500nits or 8000nits
1. Ultra bright LED lamp Nationstar, and the best raw materials to
made into plastic parts.
2. Chip encapsulation uses pure golden wire to solder, red chip
encapsulation uses double pure golden wires to keep stability. Led
Chip Epistar Nichia Cree
3. The copper silvering trestle.
4. Pure-copper environmental flat cable,pure-copper power wire.
5. Brushing black lamp with five surface and black gluing to keep
the uniformity of screen.
6. Plated signal and power connector.
7. High-end specialized outdoor glue.
8. Front & Rear maintenance Save Labour costs

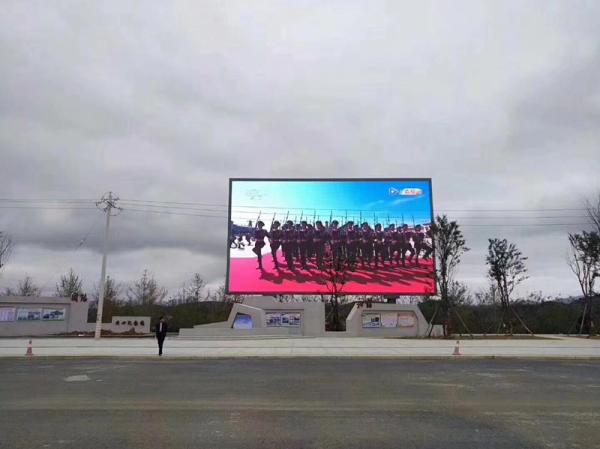

Currently P10 outdoor advertising led screen is the most popular in
outdoor digital media application. It has advantages like
customized display sizes, high definition, friendly user interface
and multi-functional control methods.
Advantages
This unit cabinet offers a cost-effective display solution for
outdoor usage.
It will operate at min Brightness also its save power .
The seamless design improves the display quality.
The replace for modules costs few, without changing the original
structure.
The square shape product can be composed from the LED cabinet with
the proportion of 16:9 and 4:3.
This LED cabinet only weighs 50kg and with depth of 191mm. That
brings the benefits for the transportation.
Featuring high resolution and high brightness, it can keep high
contrast level even in strong sunlight.
RGB outdoor advertising led screen real pixel can be hanging,
Stacking, Installation into the wall and so on. Also It can be
designed as front open, front access screens to make the
maintanance easy.
Full color P10 outdoor led video screens can satisfy all kinds of
demands of outdoor commercial digital media. And it is hotseller in
past few years. Also new ideas are used onto it like AR,
Interactive....
P10 Outdoor Front Access
| ITEM | P10 |
| Pixel Pitch(㎜) | 10mm |
| Pixel Density(pixel/㎡) | 10000 |
| Pixel Component | 1R1G1B Cree |
| LED Configuration | SMD3535 |
| Panel Dimension(W×H)㎜ | 320*320 |
| Scan Mode | 1/4 1/2 |
| Cabinet Dimension(W×H)㎜ | 960*960 1280*960 |
| Cabinet Material | Iron Aluminum |
| Brightness(cd/㎡) | ≥6000 >8000 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 300 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1200 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞10000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 8m-300m |
RGB outdoor advertising led screen real pixel video display has DIP
and SMD lamp, two soution. Each has its own advantages.
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
