    Aluminum Outdoor Led Video Screen , Meanwell Power Outdoor Led Display Screen IP65

    Ask Lasest Price
    Brand Name : Zhongyi
    Model Number : ZFO8
    Certification : CE / RoHS / FCC / ETL / TUV
    Price : negotiation
    Payment Terms : 30% T/T prepayment, 70% T/T balance before shipment
    Supply Ability : 3000 squaremeters per months
    Delivery Time : 15-18 days after received prepayment
    • Product Details
    • Company Profile

    Aluminum Outdoor Led Video Screen , Meanwell Power Outdoor Led Display Screen IP65

    Aluminum SMD3535 Epistar P8 Outdoor Led Video Screen Meanwell power supplier Front Access

    Specifications
    Front access module 320*320mm or normal 256*128mm
    Colorful Flat cable, high reliable
    4 pcs of fans for Cooling system

    Outdoor P8 SMD Scan 1/4 High Brightness , Brightness adjust automatically
    Meanwell Power supplier, Seetronic Connector
    1.6mm thickness PCB 4 layers
    1. Ultra bright LED lamp Nationstar, and the best raw materials to made into plastic parts.
    2. Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure golden wires to keep stability. Led Chip Epistar Nichia Cree
    3. The copper silvering trestle.
    4. Pure-copper environmental flat cable,pure-copper power wire.
    5. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
    6. Plated signal and power connector.
    7. High-end specialized outdoor glue.


    P8 specifications:
    1. LED cabinet of die cast aluminum material, strong and good for hanging,ground install
    2. LED lamps of SMD3535 can be optional for Nationstar or other middle level quality, meet different quality request
    3. High brightness above 5000nits, can well display color and photo,video display for whole strong sunshine day.
    4. With avaiation power and data connector cables, keep screen working more stable and reliable.

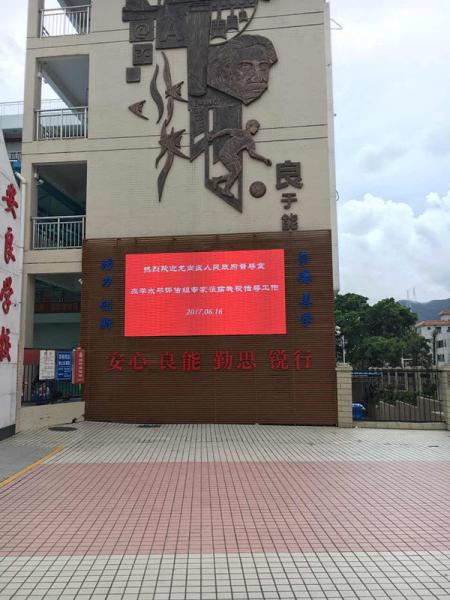

    P8 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.

    Advantages:
    Easy maintenance
    High reliable quality
    Iron cabinet customized size
    Adopt grating air convection cooling system,good heat dissapation
    Strict waterproof gurantee of quality IP65
    Strict quality control, white balance
    Strict testing, waterproof testing, Aging testing, White balance test, High /low grey test

    P8 Outdoor Fixed LED Display

    ITEMP8
    Pixel Pitch(㎜)8
    Pixel Density(pixel/㎡)15625
    Pixel Component1R1G1B Epistar
    LED ConfigurationSMD3535 nationstar
    Panel Dimension(W×H)㎜320*320 or 256*128
    Scan Mode43104
    Cabinet Dimension(W×H)㎜1024*1024/ 960*960
    Cabinet MaterialIron / Aluminum
    Brightness(cd/㎡)≥6500
    Color Temperature3200K-9500K
    Viewing Angle(V)140°
    Viewing Angle(H)140°
    Contrast Ratio125.0006944
    Max Power Consumption(w/㎡)1100
    Ave Power Consumption(w/㎡)450
    Operating Power SourceAC85~264V(47-63Hz)
    Frame Frequency(Frame/S)60
    Refresh Rate(Hz)≥1200
    Gray LevelRGB65536Grade
    Brightness Adjustment Level256Grade
    Brightness Adjustment ModeManual/Automatic/Programmable
    Control DistanceUTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
    Operating Temp﹣20℃-﹢50℃
    Operating Humidity10%-90%RH
    Protecting RatingIP65
    MTBF>50000h
    LED Life Span>100000h
    LED Best View distance5m-200m



    Pre-sale service:
    1. Reply enquiries in 16 hours.
    2. Market research and forecast for customer.

    In-sale service:
    1. Tracking report in producing.
    2. Quality test report for every order.
    After-sale service:
    1. Lifetime free maintenance and upgrade.
    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
