    Advertising Nationstar Led Wall Screen Display Outdoor Wifi Control Meanwell Power

    Ask Lasest Price
    Brand Name : Zhongyi
    Model Number : ZFO6
    Certification : CE / RoHS / FCC / ETL / TUV
    Price : negotiation
    Payment Terms : 30% T/T prepayment, 70% T/T balance before shipment
    Supply Ability : 3000 squaremeters per months
    Delivery Time : 15-18 days after received prepayment
    • Product Details
    • Company Profile

    Advertising Nationstar Led Wall Screen Display Outdoor Wifi Control Meanwell Power

    Advertising Use Nationstar Video Wall Outdoor Led Video Screen Wifi Control Meanwell power supplier


    High quality LED chip and high anti-static electricity capacity.

    Large viewing angle and smooth displaying provide excellent visual effect from every angle.

    Life time technical support, conditioned replacement and repairing 2 years.

    The integration of lamp and driving IC, together with with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.

    Ultra-high brightness, low attenuation, high reliability and weather ability.


    Specifications

    1.6mm thickness PCB 4 layers

    1. Ultra bright LED lamp Nationstar, and the best raw materials to made into plastic parts.
    2. Chip encapsulation uses pure golden wire to solder, red chip encapsulation uses double pure golden wires to keep stability. Led Chip Epistar Nichia Cree
    3. The copper silvering trestle.
    4. High-end specialized outdoor glue.
    5. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.
    6. Plated signal and power connector.
    7. Pure-copper environmental flat cable,pure-copper power wire.

    Outdoor P6 SMD Scan 1/8 High Brightness , Brightness adjust automatically

    Meanwell Power supplier, Seetronic Connector


    P6 specifications:

    1. LED cabinet of die cast aluminum material, strong and good for hanging,ground install

    2. LED lamps of SMD2727 can be optional for Nationstar or other middle level quality, meet different quality request

    3. High brightness above 5000nits, can well display color and photo,video display for whole strong sunshine day.

    4. With avaiation power and data connector cables, keep screen working more stable and reliable.

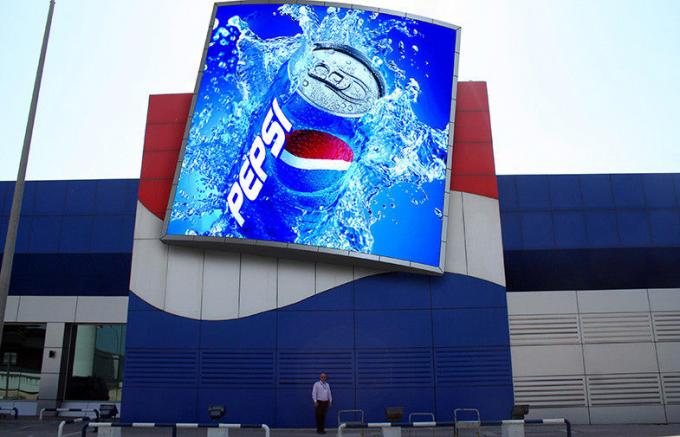

    P6 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.


    P6 Outdoor Fixed LED Display

    ITEMP6
    Pixel Pitch(㎜)6
    Pixel Density(pixel/㎡)27777
    Pixel Component1R1G1B Epistar Silan
    LED ConfigurationSMD3535 Nationstar
    Panel Dimension(W×H)㎜192*192
    Scan Mode1/8
    Cabinet Dimension(W×H)㎜576*768 / Customized
    Cabinet MaterialIron or Aluminum
    Brightness(cd/㎡)≥6500
    Color Temperature3200K-9500K
    Viewing Angle(V)140°
    Viewing Angle(H)140°
    Contrast Ratio3000:1
    Max Power Consumption(w/㎡)1000
    Ave Power Consumption(w/㎡)380
    Operating Power SourceAC85~264V(47-63Hz)
    Frame Frequency(Frame/S)60
    Refresh Rate(Hz)≥1200
    Gray LevelRGB65536Grade
    Brightness Adjustment Level256Grade
    Brightness Adjustment ModeManual/Automatic/Programmable
    Control DistanceUTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
    Operating Temp﹣20℃-﹢50℃
    Operating Humidity10%-90%RH
    Protecting RatingIP65

    Pre-sale service:

    1. Reply enquiries in 16 hours.
    2. Market research and forecast for customer.

    In-sale service:
    1. Tracking report in producing.
    2. Quality test report for every order.


    After-sale service:
    1. Lifetime free maintenance and upgrade.
    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
