Nationstar SMD3535 Outdoor Led Video Screen Full Color PC Control On Building

    Buy cheap Nationstar SMD3535 Outdoor Led Video Screen Full Color PC Control On Building from wholesalers

    Buy cheap Nationstar SMD3535 Outdoor Led Video Screen Full Color PC Control On Building from wholesalers
    • Buy cheap Nationstar SMD3535 Outdoor Led Video Screen Full Color PC Control On Building from wholesalers

    Nationstar SMD3535 Outdoor Led Video Screen Full Color PC Control On Building

    Ask Lasest Price
    Brand Name : Zhongyi
    Model Number : ZFO10
    Certification : CE / RoHS / FCC / ETL / TUV
    Price : negotiation
    Payment Terms : 30% T/T prepayment, 70% T/T balance before shipment
    Supply Ability : 3000 squaremeters per months
    Delivery Time : 15-18 days after received prepayment
    • Product Details
    • Company Profile

    Nationstar SMD3535 Outdoor Led Video Screen Full Color PC Control On Building

    Nationstar SMD3535 Meanwell 100-240V Outdoor Led Video Screen PC control on Building


    Specifications
    Waterproof is IP65 for lamp & top, other part: IP54.
    Modules 320*320mm 320*160mm 160*160mm
    With certificate of CCC /CE/UL/TUV;
    P10 SMD3535 led screen Nationstar
    Better viewing angle 140 / 140 degree
    Driving method is 1/4 can constant current;
    MBI5041/MBI5024/JXI5020 of driving IC available;
    Maximum power consumption is less than 83.61W/sq.ft (900W/㎡);
    Meanwell Power supplier 100-240V

    Advantages:
    Easy maintenance
    High reliable quality
    Iron cabinet customized size
    Adopt grating air convection cooling system,good heat dissapation
    Strict waterproof gurantee of quality IP65
    Strict quality control, white balance
    Strict testing, waterproof testing, Aging testing, White balance test, High /low grey test

    P10 specifications:

    Cabinet Construction: 960*960mm/ 960*800mm /640*640mm
    Cabinet Dimension: 960X960X150mm
    Power Supply :110V/220
    LED Screen Viewing Angle Horizontal : 110±10°Vertical: 60±10°
    Brightness >7000cd/m²
    Best Viewing Distance :10~100m
    LED Life:100,000Hours

    Pixel/SQM :10000Pixel/m²
    LED Lamp LED TYPE :SMD3535
    Chip Brand :EPISTAR
    Module Module Resolution :32Pixel * 16Pixel

    Scanning Method: 1/4 Scanning
    Module Dimension :320mm(Width)x160mm(Height)
    Drive IC :MBI5020
    Refresh Rate >2400HZ

    Cabinet Cabinet Thickness :150mm

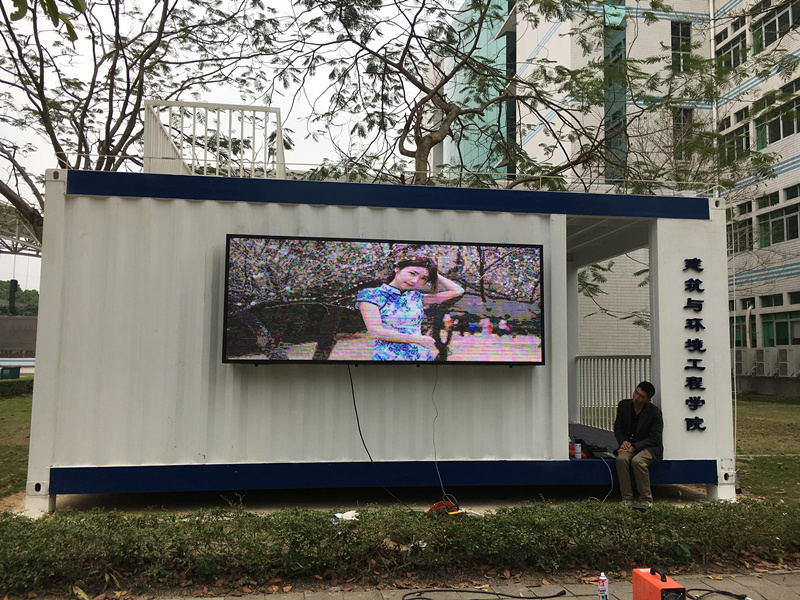

    P10 Waterproof outdoor led video screen can be hanging, Stacking, Installation into the wall and so on. Also It can be designed as front open, front access screens to make the maintanance easy.


    Full color P10 outdoor led video screens can satisfy all kinds of demands of outdoor commercial digital media. And it is hotseller in past few years. Also new ideas are used onto it like AR, Interactive....


    P10 Outdoor LED Display

    ITEMP10
    Pixel Pitch(㎜)10mm
    Pixel Density(pixel/㎡)10000
    Pixel Component1R1G1B Full color
    LED ConfigurationSMD3535
    Panel Dimension(W×H)㎜320*160 320*320 160*160
    Scan Mode1/4 (or 1/2)
    Cabinet Dimension(W×H)㎜960*960/Customized
    Cabinet MaterialIron Or Aluminum
    Brightness(cd/㎡)≥6000 ( or ≥7000)
    Color Temperature3200K-9500K
    Viewing Angle(V)140°
    Viewing Angle(H)140°
    Contrast Ratio3000:1
    Max Power Consumption(w/㎡)750
    Ave Power Consumption(w/㎡)300
    Operating Power SourceAC85~264V(47-63Hz)
    Frame Frequency(Frame/S)60
    Refresh Rate(Hz)≥1200
    Gray LevelRGB65536Grade
    Brightness Adjustment Level256Grade
    Brightness Adjustment ModeManual/Automatic/Programmable
    Control DistanceUTP<100m;Muti Mode Fiber<500m;Single Mode Fiber<10Km
    Operating Temp﹣20℃-﹢50℃
    Operating Humidity10%-90%RH
    Protecting RatingIP65
    MTBF>10000h
    LED Life Span>100000h
    LED Best View distance8m-300m

    Pre-sale service:
    1. Reply enquiries in 16 hours.
    2. Market research and forecast for customer.

    In-sale service:
    1. Tracking report in producing.
    2. Quality test report for every order.


    After-sale service:
    1. Lifetime free maintenance and upgrade.
    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
